If you are looking for a reversible cam-rise hinge that is extra rugged for challenging applications, you've come to the right place. The 1277 heavy duty cam-rise hinge has various strap lengths and offsets to accommodate any walk in cooler or freezer. The offset measurement is the difference between the outside surface of the door and the outside surface of the frame or cabinet to which the door seals.
Above, you'll have the option to select one of the following:
1277
Heavy duty cam-rise hinge, flush (no offset) - Part# 11277000004 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-1/8" offset - Part# 11277000008 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-1/4" offset - Part# 11277000010 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-3/8" offset - Part# 11277000012 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-1/2" offset - Part# 11277000014 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-5/8" offset - Part# 11277000016 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-3/4" offset - Part# 11277000018 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8" Heavy duty cam-rise hinge, 1-7/8" offset - Part# 11277000020 Measurements - strap length 21", strap width 4" , base: 7-1/8" x 2-7/8"

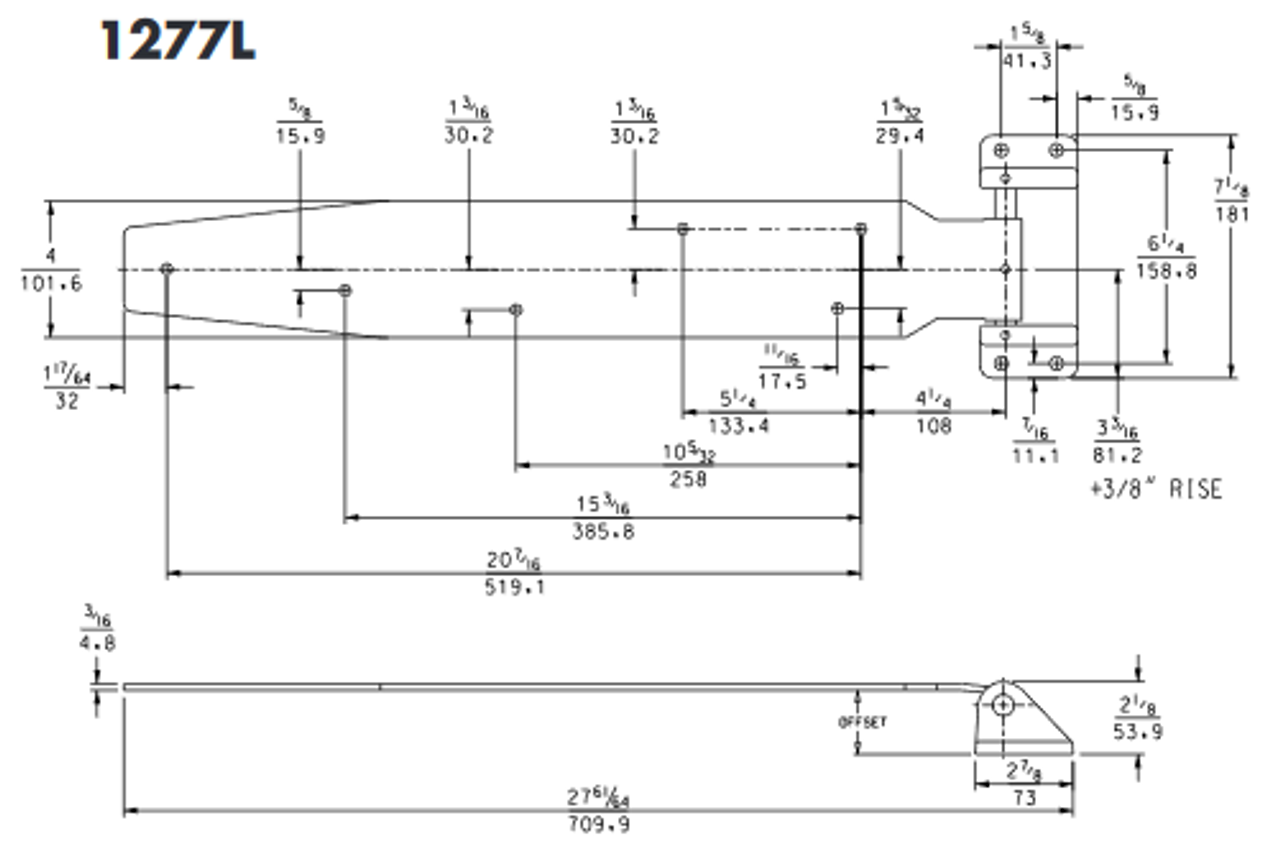

1277L
Heavy duty cam-rise hinge, 1-1/8" offset - Part# 11277L00008
Measurements - strap length 26", strap width 4" , base: 7-1/8" x 2-7/8"
Heavy duty cam-rise hinge, 1-1/4" offset - Part# 11277L00010
Measurements - strap length 26", strap width 4" , base: 7-1/8" x 2-7/8"
Heavy duty cam-rise hinge, 1-3/8" offset - Part# 11277L00012
Measurements - strap length 26", strap width 4" , base: 7-1/8" x 2-7/8"
Heavy duty cam-rise hinge, 1-5/8" offset - Part# 11277L00016
Measurements - strap length 26", strap width 4" , base: 7-1/8" x 2-7/8"
We carry a large selection of commercial cooler parts.
If this heavy duty walk in cooler hinge isn't what you need, take a look at some of our other walk-in hinges available today!
